		Kevlar Fibere Packing Series
		Kevlar Fibre Braided Packing Kevlar Fibre Packing With Silicon Rubber Core
		Nomex Fibre Braided Packing Spun Kevlar Fiber Packing
		Graphited Spun Aramid Fiber Packing

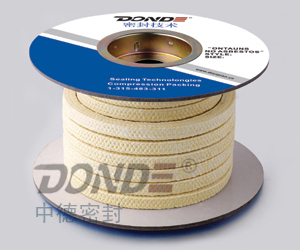

Kevlar Fibre Braided Packing

Item No.:ZD-P1400

Description:Kevlar fiber braided packing is made of Du Pont's Kevlar yarn.As the strength and module of Kevlar is as high as the steel-like strength.So kevlar fiber braided packing compared with other kinds of braided packing,kevlar fiber braided packing can resist more serve media and higher pressure. Kevlar fiber braided packing can be installed separately or as end rings with other kinds of packing to combine different characteristics into packing set.Kevlar fiber braided packing is mainly used as substitite of asbestos in pump systems. Property of Kevlar fiber braided packing is better than asbestors, and kevlar fiber braided packing covers all the services ranges which asbestos packing provided and more.Under very bad conditions where ordinary asbestos packing can not provided the satisfied effect. But kevlar fiber braided packing has long service. Kevlar fiber braided packing is usually applied to pulp factory, sand slurry,tin mine and feed water pump of power plant etc.

Main specification:

Chemical medicine （soak for 24 h in room temperature）		Descent rate of tensile strength％	Chemical medicine （soak for 24 h in room temperature）		Descent rate of tensile strength％	Chemical medicine （soak for 24 h in room temperature）		Descent rate of tensile strength％
Acid	Acetic acid 99.70%	None	Alkali	Ammonium hydroxide	None	organic solvent	Acetone	None
	Hydrochloric acid 37%	None	Alkali	NaOH	10		Benzene
	Fluoric acid 48%	None	Other chemical medicine	Petrol	None		Alcohol
	Nitric acid 70%	None		Salt water	＜0.5		Xylol
	Sulphuric acid 96%	100		Boiled water	2		Xylol

TECHNIQUE DATA	Centrifugal separator	Reciprocating pump	Valve
PH VALUE	2~13
LINEAR Vg(M/S)	25	1.5	2
PRESSURE（Bar）	30	100	200
WORKING TEMPERATURE	-100CENTIGRADE ~ 280 CENTIGRADE

Parameter:

INCH ″	1/8	5/32	3/16	1/4	5/16	3/8	7/16	1/2	9/16	5/8	11/16	3/4	7/8	1
MM	3	4	5	6	8	10	11	12	14	16	18	20	22	25
M / KG	50	35	25	15	10	7.5	5.3	4.0	3.6	2.8	2.3	1.8	1.4	1.1

How to Order：

Item	Order Code
Kevlar Fibre Braided Packing	ZD-P1400
Kevlar Fibre Packing With Silicon Rubber Core	ZD-P1401
Nomex Fibre Braided Packing	ZD-P1410
Spun Kevlar Fiber Packing	ZD-P1430
Graphited Spun Aramid Fiber Packing	ZD-P1431

For more information,please contact with us directly,thanks！
