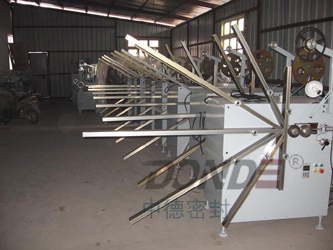

Large Winder for SWG (Vertical Style)
Item No:ZD-M2500B
Description:It
is a vertical winding machine, which is designed to produce
spiral wound gasket with inner ring and without inner ring
from 200mm to 1600mm. driven by variable frequency gear
motor. Dual roller drive gasket by ID and OD to make winding
stable. With OD control tools
Option:
1.V
or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm
Technical Parameter:
|
Gasket Size
|
with inner ring / without inner ring
|
|
Nominal Thickness
|
4.5mm
|
|
Maximum Outer Diameter
|
1600mm
|
|
Minimum Inner Diameter
|
200mm
|
|
Repeatability of Outer Diameter
|
±0.8mm
|
|
Linear Speed
|
0-800mm/s
|
|
Total Power
|
2.2 KW
|
|
Motor Power
|
1.5 KW
|
|
Voltage
|
380V/220V
|
|
Air Pressure
|
6-8 BAR
|
|
Variable Frequency Controller
|
2.2G
|
|
Dimension
|
2200*850*1800mm
|
|
Weight
|
220 KG
|
