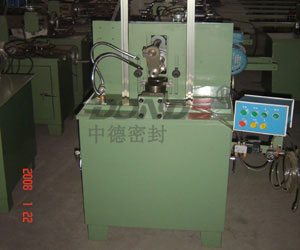

Outer Ring Groover

Item No:ZD-M20

Description:It is a vertical machine, which is designed to groove outer ring of spiral wound gasket in carbon steel and stainless steel. The diameter of ring is 200mm through 4000mm.

Easy to operate, even for unskilled worker. Several machines just need one worker, it improves productivity much.

Technical Parameter:

Ring Thickness	2-4mm
Maximum Outer Diameter	4000mm
Minimum Inner Diameter	200mm
Total Power	2.2 KW
Motor Power	0.55 KW
Voltage	380V/220V
Dimension	9508001250mm
Weight	320 KG
